Convention Specification
Tablet Arm
Architectural Specification
Sizes:
Back heights: 35"
Chair widths: 22-1/8" - 19-1/8"
Chair widths are measured from the centerlines of the armrests.
Features:
Durable plastic outer back and seat pan
Padded and upholstered seat and back
Gravity lift mechanism returns seat to upright position
Narrow profile allows maximum seating density
- Molded, high-density, polypropylene plastic
inner back has a compound curve for comfort, a 2", cold-cured, molded, polyurethane foam pad and an upholstered cover. - Molded, high-density, polypropylene plastic outer back with a return cuff at the sides and top for fabric protection.
- 2 ½", cold-cured, molded, polyurethane foam pad with a woven, polyester chafe barrier and five serpentine springs.
- Maintenance-free, gravity-lift seat to the 100% fold position.
- Molded, high-density, polypropylene plastic seat pan to provide a maintenance-free cover for the underside of the seat assembly.

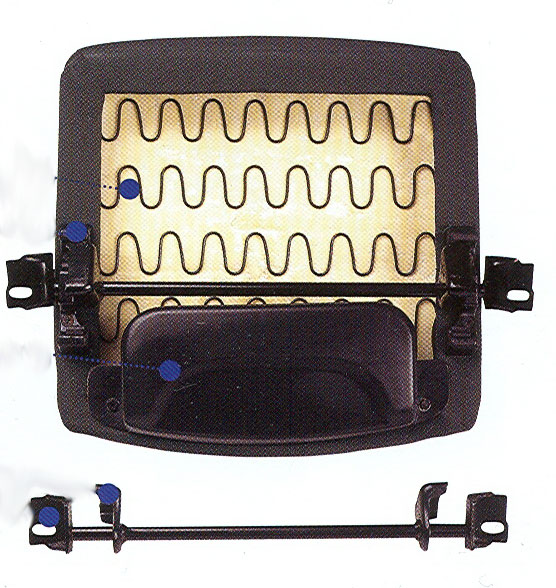

- Molded, high-density, polypropylene plastic armrest, 13 ½" long, providing excellent protection against skin oils and abrasive use. Seat Assembly
- Serpentine, "No Sag" springs to provide constant comfort for the occupant.
- Cast Zepel Nylon bearing with neoprene up and down stops provides lifetime lubrication.
- Counterbalance weight for the gravity-lift operation.
- Up and down stops.
- Cross shaft is the structural connections between standards.
